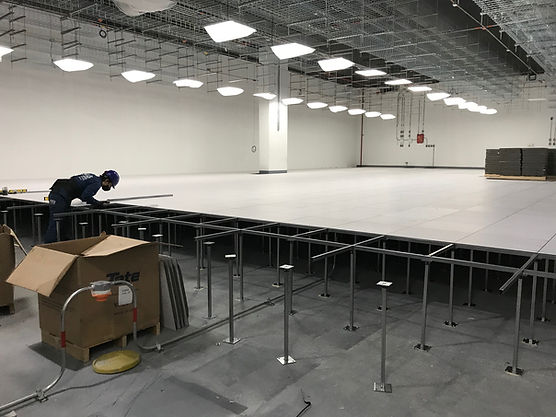

Parts of Raised Floor Systems
The raised floor panel forms the flat surface of the access floor.
Panel
It is usually about 600 mm × 600 mm in size and it is constructed using steel materials. Concrete materials are used to fill the panel making it durable and flexible in case some improvements need to be done on the building services installed in the panel. Aluminum can also be used for reinforcement purposes. These floor panels are usually availed in different designs and materials and therefore the best materials can be chosen based on the required specifications as well as the budget.

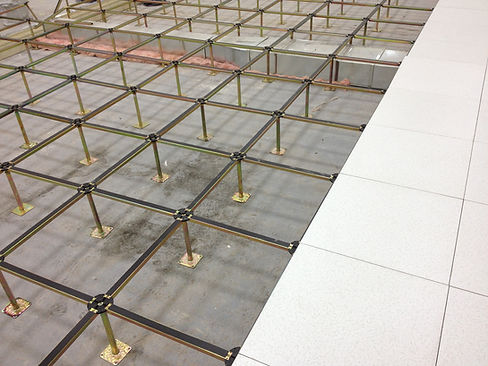

Pedestal
The pedestal part of the raised floor provides structural support for the raised floor. They are commonly referred to stands, legs, jacks or stanchions. The pedestal connects the floor base and the head allowing enough space for any building materials that needs to be installed beneath the floor. Different floor pedestal may vary depending on the floor system installed in the building. The pedestals are flexible for any adjustments providing vertical support structure for the raised floor.
Stringer
The stringers are also essential parts in the raised floor construction as they aid in joining the pedestals forming a framework for a strong floor panel. They are also referred to as connecting rods or grids and aids in providing a lateral stability especially for deep voids in raised floor constructions. The stringers can be made of aluminum channels or square tube depending on the raised floor design. They can be fastened at both ends with a screw to firmly connect to the pedestals. Basically, the stringer provides additional support for the raised flooring.
Besides knowing the various components that make up the flooring system, you need to get a clear understanding for the entire flooring process as well.
